Features
For over 60 years, Silverson has been supplying high shear mixers.
Unlike conventional mixers that use propellers or paddles, high shear mixers reduce solvent particles through shear force and stir the mixture thoroughly. This shortens mixing time and prevents aggregation or poor blending.
A variety of mixer models are available to suit different applications and workspaces.

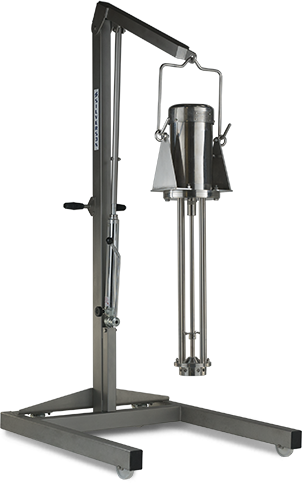

Batch Mixers
Batch mixers are versatile high shear mixers that meet a wide range of needs such as mixing, emulsifying, homogenizing, disintegrating, and dissolving.
Available in models capable of handling from 5 to 30,000 liters.
The simple construction minimizes maintenance time for cleaning and part replacement.
Batch Mixer Lineup

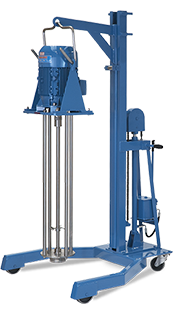

Medium Model Range
All medium-sized models come with interchangeable work heads designed for different applications.
This allows a single mixer to be used for a wide variety of processes.
Additionally, each model can be mounted on a hydraulic lift stand for easy movement between tanks.
These features make the medium models highly efficient with minimal equipment.
| Model | BX | DX | EX | FX | GX10 | GX10 | GX20 |
|---|---|---|---|---|---|---|---|
| Motor Unit Specs | Output: 750W Power: AC 100V (200V option) 50/60Hz Rated Speed: 3,000 rpm |
Output: 1500W Power: AC 100V (200V option) 50/60Hz Rated Speed: 3,000 rpm |
Output: 3000W Power: AC 100V (200V option) 50/60Hz Rated Speed: 3,000 rpm |
Output: 4000W Power: AC 100V (200V option) 50/60Hz Rated Speed: 3,000 rpm |
Output: 7500W Power: AC 100V (200V option) 50/60Hz Rated Speed: 3,000 rpm |
Output: 7500W Power: AC 100V (200V option) 50/60Hz Rated Speed: 3,000 rpm |
Output: 15000W Power: AC 100V (200V option) 50/60Hz Rated Speed: 3,000 rpm |
| Processing Capacity (Liquid) [L] | 220 | 450 | 675 | 1200 | 1800 | 2250 | 2250 |
| Processing Capacity (High Viscosity) [L] | 20 | 50 | 90 | 150 | 275 | 400 | 400 |

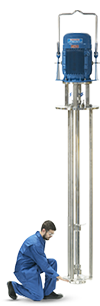

Large Model Range
Models with tank capacities of up to 30 tons are typically custom-designed and built based on specific user requirements.
These mixers shorten mixing time and prevent solvent aggregation or poor blending.
A wide variety of models are available, allowing us to propose the best mixer for your application and workspace.
| Model | 700X | HX10 | HX30 | JX | KX |
|---|---|---|---|---|---|
| Motor Unit Specifications | Output: 11,000W Power: AC 100V (200V option) 50/60Hz Rated Speed: 1,500 rpm |
Output: 7,500W Power: AC 100V (200V option) 50/60Hz Rated Speed: 1,000 rpm |
Output: 22,000W Power: AC 100V (200V option) 50/60Hz Rated Speed: 1,000 rpm |
Output: 15,000W Power: AC 100V (200V option) 50/60Hz Rated Speed: 1,000 rpm |
Output: 30,000W and above Power: AC 100V (200V option) 50/60Hz Rated Speed: 1,000 rpm |
| Processing Capacity (Liquid) [L] | 3,500 | 5,000 | 5,000 | 7,000 | 10,000 |
| Processing Capacity (High Viscosity) [L] | Depends on application (Please inquire) | Depends on application (Please inquire) | Depends on application (Please inquire) | Depends on application (Please inquire) | Depends on application (Please inquire) |
Others
The above models are among Silverson's most popular mixers, but custom designs based on specific dimensions or applications are also available.
In addition, we can arrange test rentals of standard models (non-customized).
If you have any questions, requests, or would like a quotation, please feel free to contact us here.
